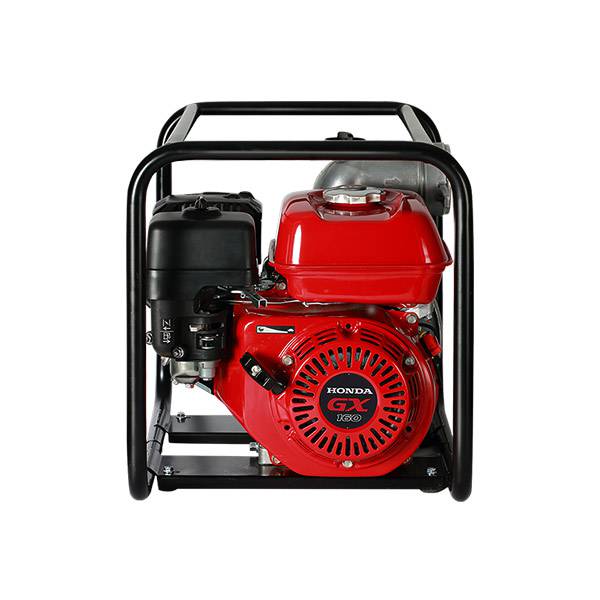

WB30XD, the 3 Inch category model - fulfills economical, timely and efficient irrigation needs of farmers in plains with best in class performance delivering up to 1,100 liters discharge volume per minute @ 23 meters head making it capable to supply water from canals, borewells, ponds - in short - water bodies of all possible types – thus improving their productivity.
SPECIFICATIONS
| Air Cleaner | Dual Type |
| Bore X Stroke (mm) | 68.0 X 45.0 |
| Displacement (cm3) | 163 |
| Description Code | 4-Stroke, Single Cylinder, Air cooled, Horizontal Shaft, Over Head Valve |
| Fuel Tank Capacity (L) | 3.1 |
| Fuel Type | Petrol |
| Net Power | 3.6 kw / 3600 rpm |
| Rated Power | 2.9 kw / 3600 rpm |
| Suction Port Diameter (mm) | 80 |
| Discharge Port Diameter (mm) | 80 |
| Dry Weight (kg) | 28 |
| Total Head (m) | 23 |
| Maximum Discharge (Litre per Minute) | 1100 |
| Dimensions (LXWXH) (mm) | 510 X 385 X 435 |
| Type | Centrifugal Self Priming, Monoblock Horizontal with Mechanical Seal |
| Suction Head | 7.5 |
